BDS 6" Performance Elite Coilover Lift Kit - Petrol (Chevy 1500 2019-2024)
BDS 6" Performance Elite Coilover Lift Kit - Petrol (Chevy 1500 2019-2024)
Couldn't load pickup availability
High Clearance Coilover Systems for Chevy/GMC 1500 trucks featuring FOX Performance Elite shocks
These PE coilover systems join the current lineup offering improved performance and capability. These kits are based around the tried and true high clearance technology that has made BDS the go to for GM suspension lifts, designed from the ground up to get the more out of your truck with the most ground clearance on the market. While some companies build "kits" to fit larger tires, BDS Suspension prides itself in engineering complete suspension systems designed to take your vehicle's performance to the next level while retaining OE-level functionality. Case in point the (NHTSA) National Highway Traffic Safety Administration's FMVSS No.126 compliance standards requiring any aftermarket modification to not adversely effect the vehicle's electronic stability control (ESC) system performance in the event of an evasive maneuver.

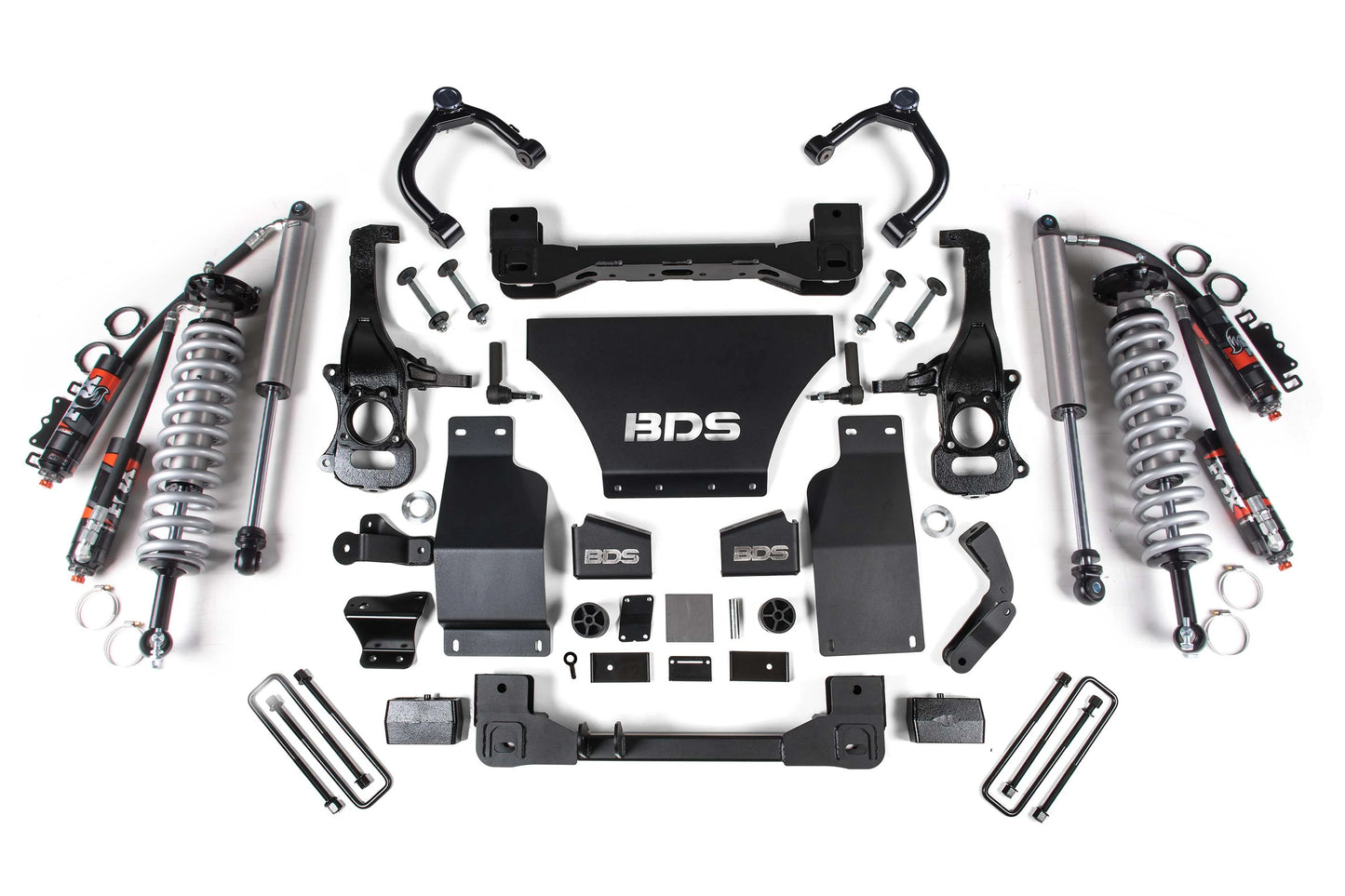

Kit Components
Qty Part# Description
1x 011518 2019-2023 Chevy/GMC 1500 5in Rear Box Ki
1x 021664 2019-2023 Chevy/GMC 1500 Knuckle Box 1of
1x 021665 2019-2023 Chevy/GMC 1500 Knuckle Box 2of
1x 021682 2019-2023 Chevy/GMC 1500 6in Front Box K
1x 021683 2019-2023 Chevy/GMC 1500 6in Front Box K
1x 121633 2019-2023 Chevy/GMC 1500 Coilover Reserv
1x 88406323 Kit: BDS 2019-2023 GM 1500, 2.5 PES, R/R
1x 88426023 19-23 GM 1500, 2.5 Perf. Elite Series, R
Important Kit Notes
1. Requires frame bracket modification
2. Will not fit MagneRide / ARC equipped models
3. Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled.
4. 17" Wheels with 4.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle / tie rod.
5. All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
6. Will NOT work with TrailBoss or AT4 models..
7. 2.7L models use Diesel kit for proper skid plate fitment
8. This kit has not been test fit on Silverado ZR2 or Sierra AT4X models.
9. Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
