6" KING SUSPENSION 2.5" CHEVROLET SILVERADO 1500

6" KING SUSPENSION 2.5" CHEVROLET SILVERADO 1500

Regular price $8,939.00
Regular price $9,270.00 Sale price $8,939.00
Sale Sold out

6" KING SUSPENSION 2.5" CHEVROLET SILVERADO 1500 LTZ

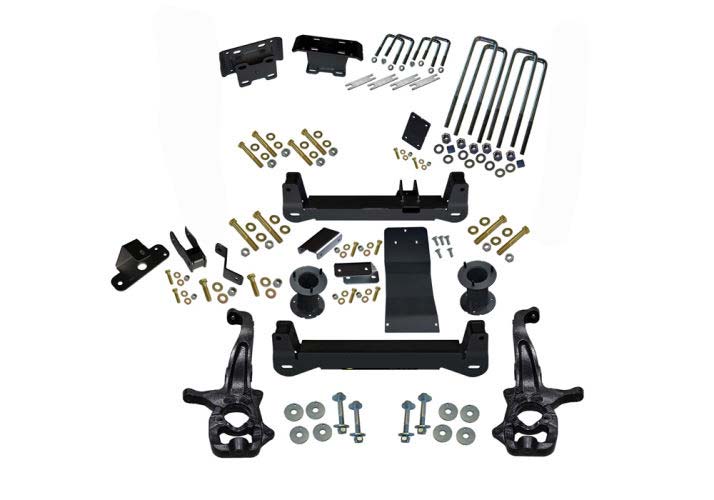

  • Front CNC machined steering knuckles, front strut spacers, ¼” plate steel control arm cross-members, differential drops, differential skid plate, fabricated rear blocks, U-bolts

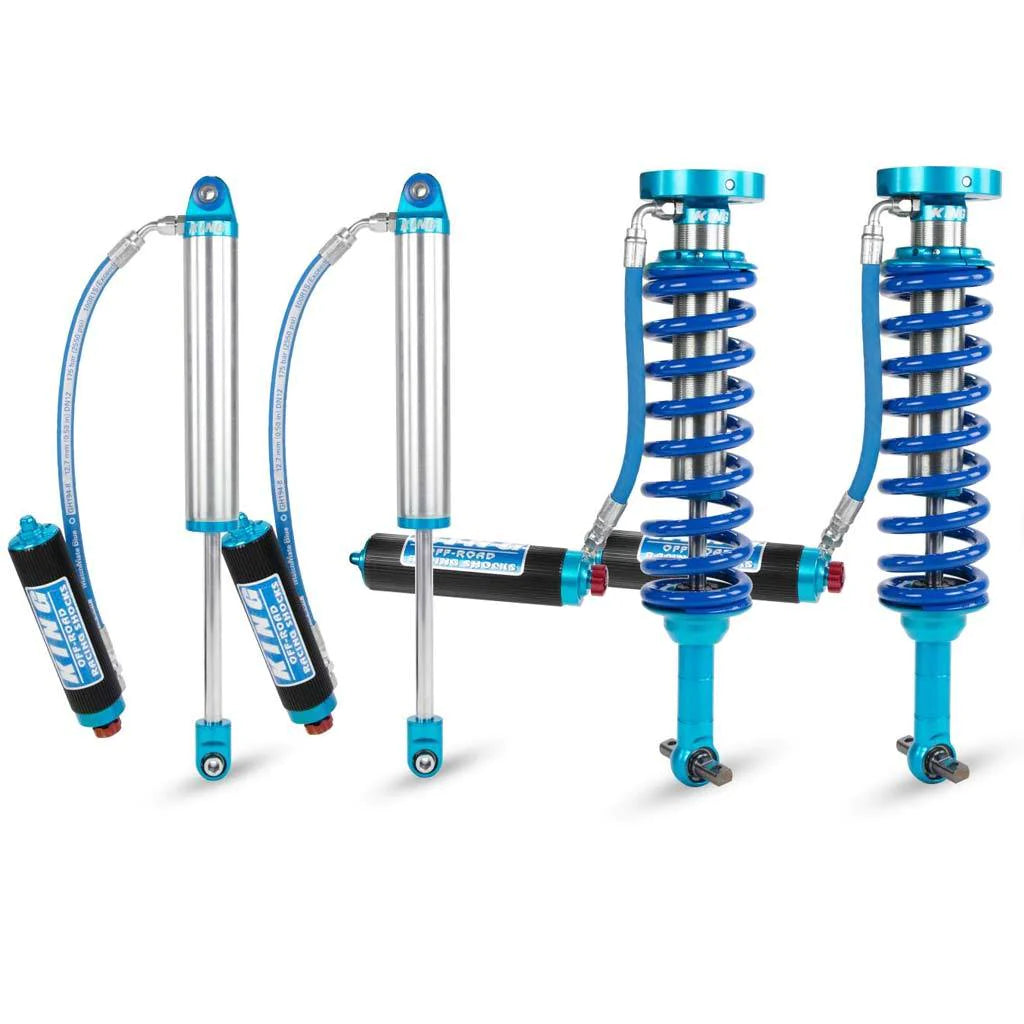

  • Front & Rear King 2.5" Finned Reservoirs Suspension
  • Designed using Original Equipment (OE) CAD data
  • Differential does not have to be cut
  • Retains stock track width
  • Clearance up to a 35” or 37" with right offset and trimming
  • Cross-members constructed out of ¼” plate steel
  • Corrects Front to Rear factory rake for a more level stance
  • Anti-Wrap Fabricated Rear blocks and U-bolts for rear lift
  • Grade 8 Hardware
  • Note: This kit requires a 20" rim with a minimum of -12 offset to clear the spindles.

SPECIFICATIONS KING 2.5" FRONT SHOCKS

  • 2-3″ of lift
  • 2.5″ ID honed CAD plated cylinders
  • Short finned res. w/ optional compression adjuster
  • 7/8″ hard chrome micro polished shafts
  • Aeroquip high pressure hoses
  • PTFE lined rod ends
  • Fully rebuildable and revalveable
  • Made in the USA

SPECIFICATIONS KING 2.5" REAR SHOCK SETUP

  • 2.5″ ID honed CAD plated cylinders
  • 7/8″ hard chrome micro polished shafts
  • Short finned res. w/ optional compression adjuster
  • PTFE lined rod ends
  • Fully rebuildable
  • Made in the USA
